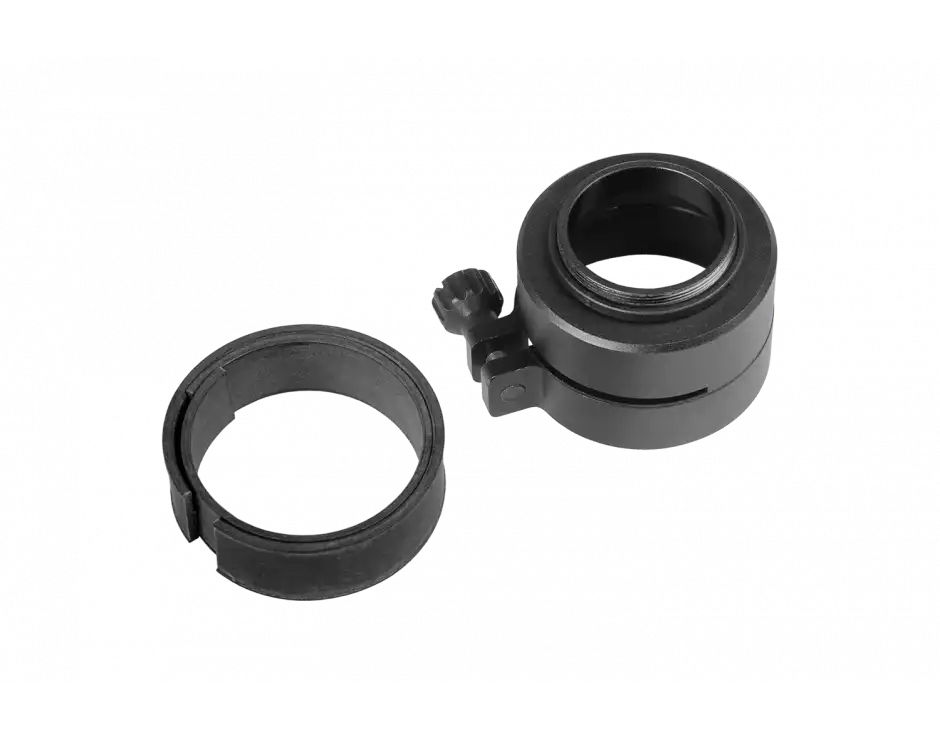

AGM Front Scope Mount #1

AGM Front Scope Mount is the optional adapter to install the clip-on device onto day optics with 25.4-30 mm objective diameter. This adapter works with Comanche-22, Victrix TC, Anaconda TC series clip-ons (NOT COMPATIBLE WITH RATTLER SERIES CLIP ON’S).

Use the optional Front Scope Mount o attach a clip-on device to the front lens of a daytime optic. The mount must fit with the day optics front lens diameter. There are optional mounts for 25.4-30 mm, 38-42 mm, 46.7-50 mm, 56-58.7 mm and 62 mm objective lenses diameter.

DIAMETER OF THE INSERTS: 25,4 mm; 30,0 mm

CLEAR APERTURE OF DAY SCOPE LENS:  20 mm; 24 mm

EXAMPLE OF THE SCOPES:
- Leupold 1.5-5x20 PR (25,4 mm insert)
- Leupold 1.5-5x20 MR/T M2 (30,0 mm insert)
- Zeiss 1.1-4x24T (30,0 mm insert)
