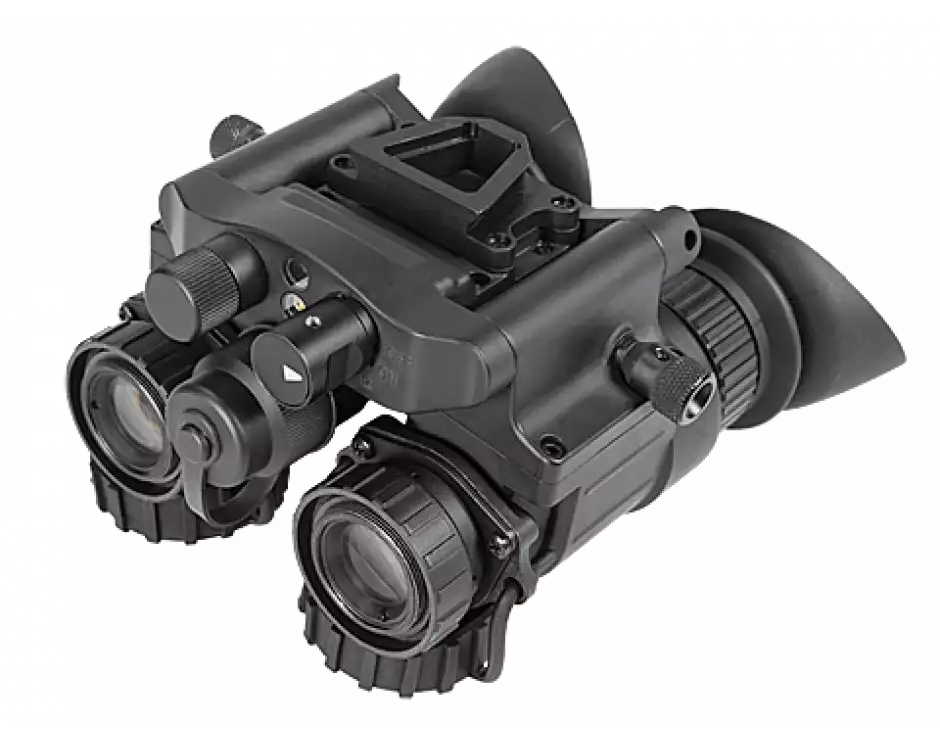

The AGM NVG-50 is a dual-channel night vision system. The NVG-50 uses optics which give it a wider 51°
field of view with the tradeoff of shorter eye-relief. The NVG is made of a compact composite housing
for durability, and features advanced multi-coated optics. The device can be outfitted with either a Gen
2+ or Gen 3 high-performance image intensifier tube (IIT). The bright light cut-off feature ensures that
the high-quality photocathode tube is protected. The NVG is also equipped with Manual Gain Control,
which adjusts the image brightness, providing the highest possible image quality even in changing light
conditions. Operating from a single AA alkaline battery or CR123A battery, the NVG can run up to 20
hours. Also equipped with an integral infrared illuminator for reading in the dark.
AGM NVG-50 Overview. Read more at TheFirearmBlog
For hands-free use of the NVG, it can be installed to many various mounts, such as the AN/PVS-7D, AN/PVS-14, AN/PVS-7A/C, AN/PVS-15, and AN/PVS-18 mounts, or to the mounts with mini-rail interface.
NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.
Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.
NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.
Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount
- NVG Interface Shoe
- Bayonet/Horn Interface Shoe
- Demist Shield (2)
- Sacrificial Window
- Packing Box
- Soft Carrying Case
- Lens Cloth
- Battery Adapter
- User Manual
